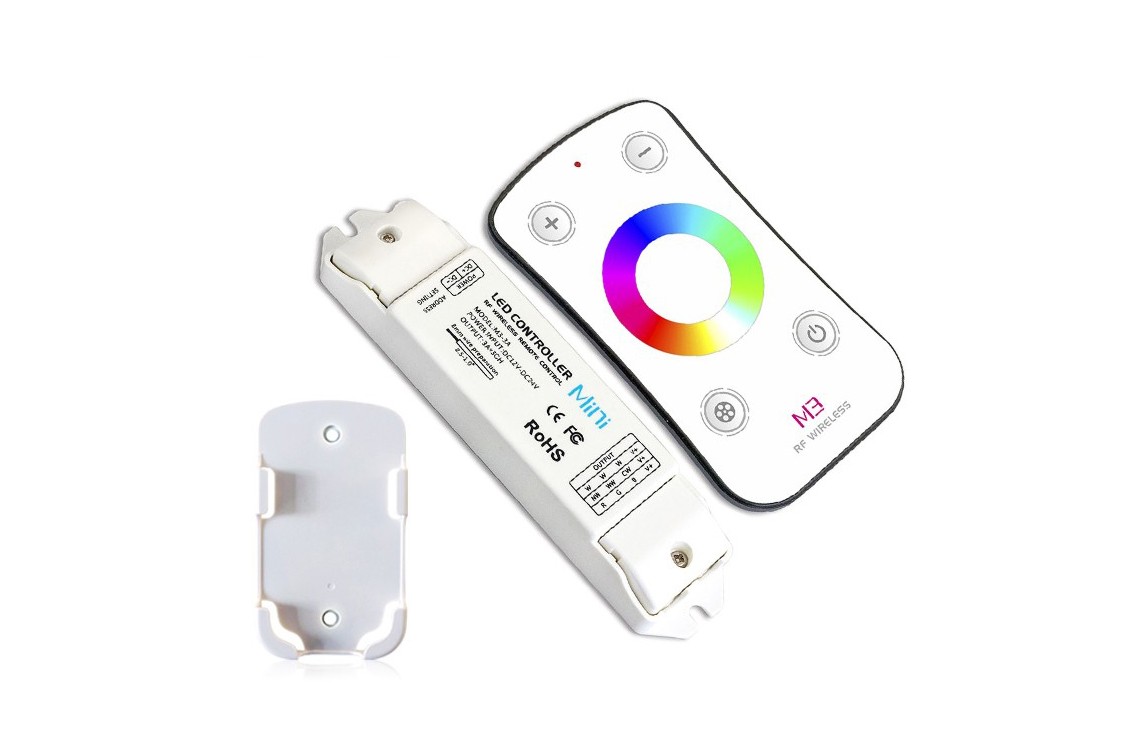

Model : M3 & M3-3A
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.
TECHNICAL DATA
M3 & M3-3A

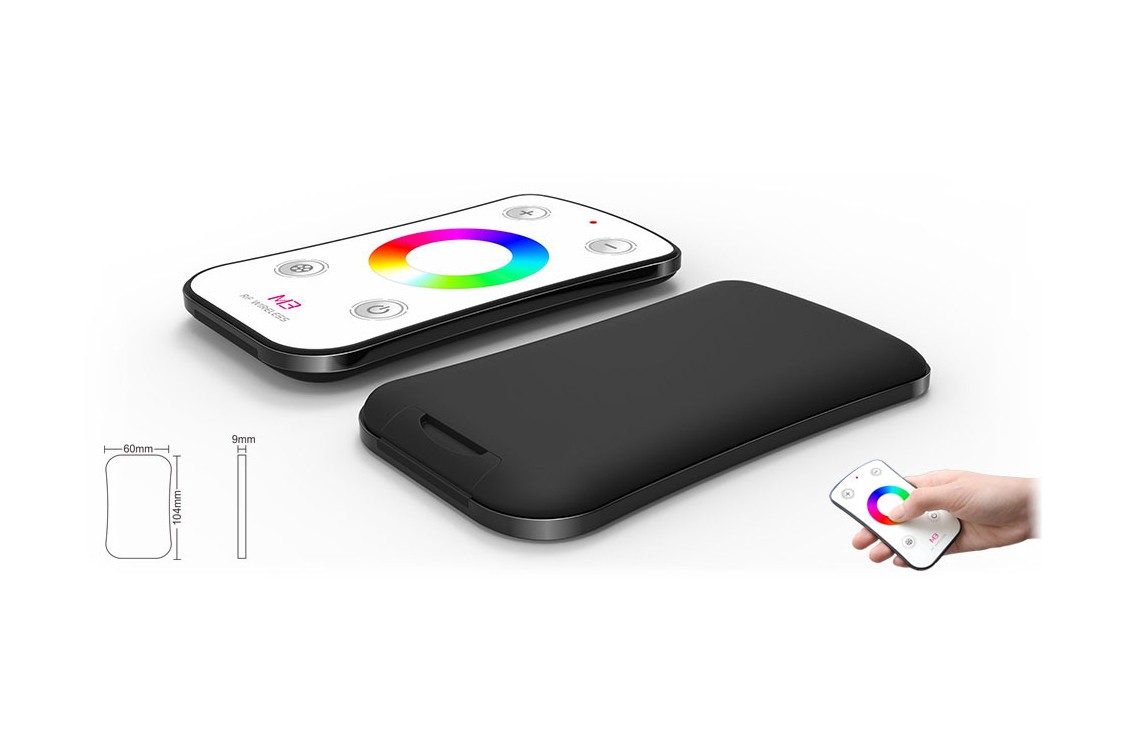

* Remote Model : M3 (RGB)
* Working Frequency : 433.92MHz
* RF Remote Distance : Max. 30m

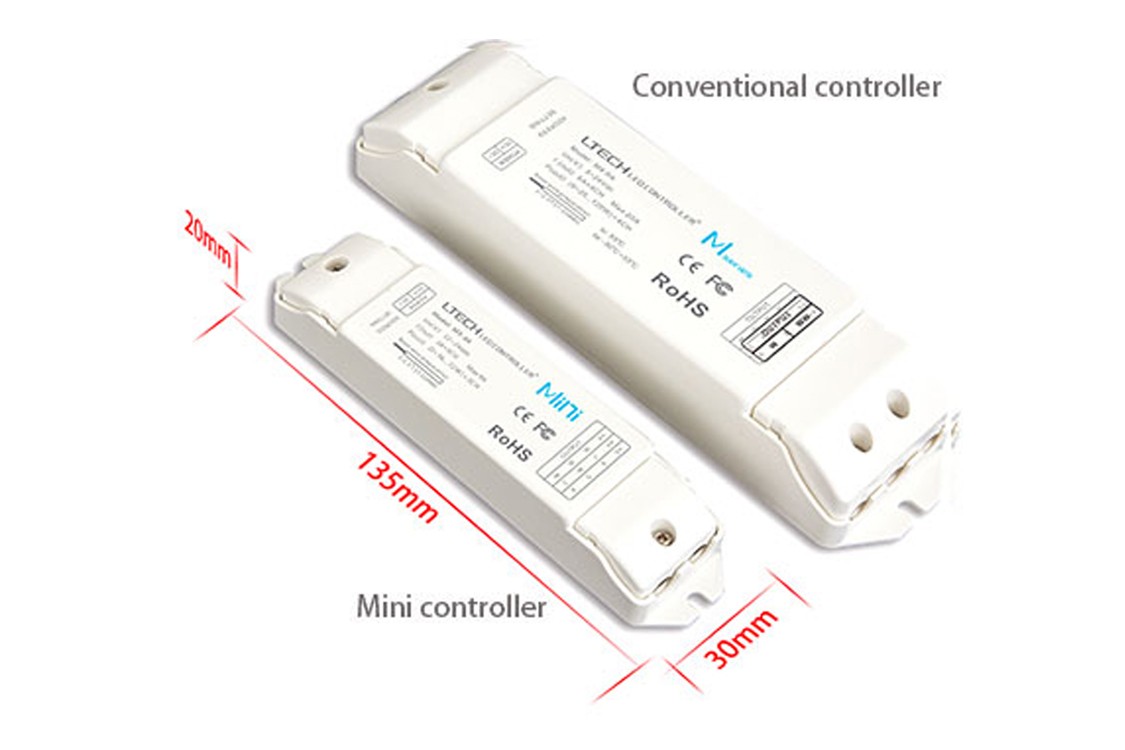

* Receiver Model : M3-3A
* Input Voltage : 12-24Vdc
* Max. Current Load : 3A * 3CH Max. 9A
* Max. Output Power : 108W / 216W (12V/24V)
* Working Temp. : -30℃ ~ +55℃
* Package Size : L200*W130*H22 (mm)
* Weight : 140g
